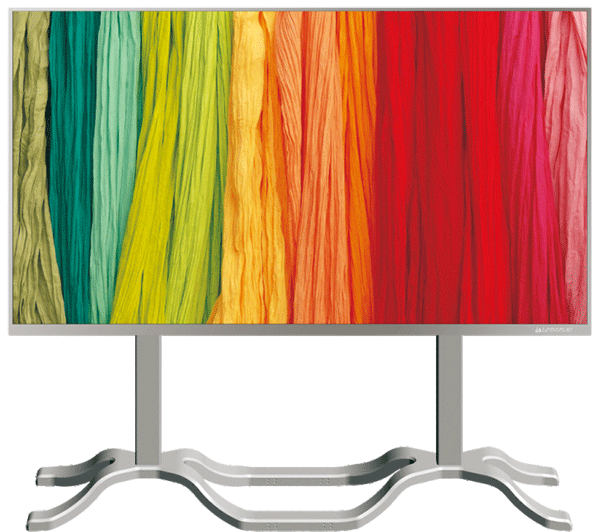

Super LED TV

120'' / 150'' / 180'' / 210'' / 240''

With 100% fully front access design, super LED TV supports for easy installation and maintenance, which is a perfect solution for high end conferencing or commercial display application.


Easy Front Service Design

1.The magnet edge-on the front.
2.Magnet is appressed in the middle of module.
3.Pulling the magnet slowly, module will be apart from cabinet.
4.The same way to put the module back to the cabinet.

Patent Mask Technology

Moire Elimination Mask

Patent Anti-moire mask design can obtain a perfect contrast ratio and reduce the moire effect. It's an ideally solution for broadcasting or applications under a camera.

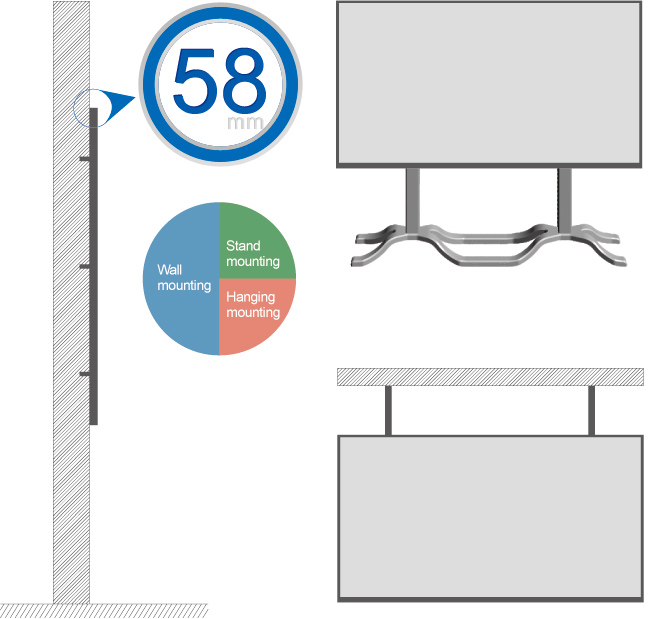

Utra-thin

Super thin designed, with totally thickness≤58mm;
Clean built-in routing, makes a simplified and elegant out-looking;
Utra-thin & Light

Utra-thin & Light

Unit weight is 7.4kg, T≤ 58mm
Large View

Large View

Wide view angle of 160°
Good Heat Dissipation

Good Heat Dissipation

Aluminum alloy with elaborate cooling design achieve efficient heat dissipation effect.
Brightness adjustable

Brightness adjustable

200-1500cd/㎡ brightness adjustable.
Easy Front Service

Easy Front Service

100% fully front access design
Efficient and Energy Saving

Efficient and Energy Saving

More effective energy saving than other LED display when under the same brightness.

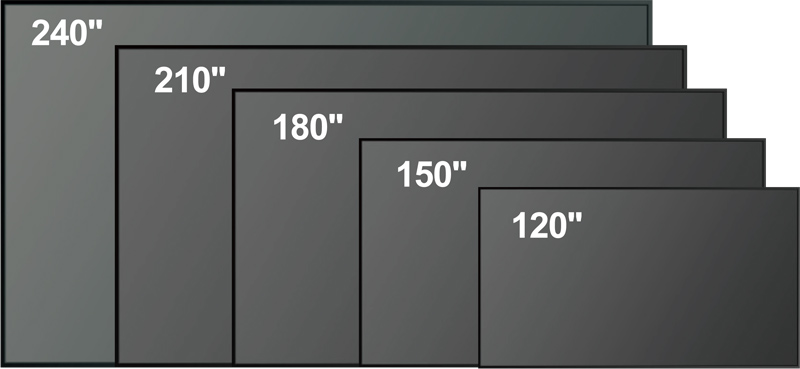

Large Size

120''/150''/180''/210''/240'' size available
for more options,to create a large, seamless
and gorgeous display especially applicable to
villa, exhibition hall, conference or
entertainment center.
5k =5120x2880
4k =3840x2160
2k =2560x1440 / 2048x1152
1080p =1920x1080
720p =1280x720

Key Features

Marvelous LED TV

A next generation of true TV

Seamless & Easy connection

Seamless & Easy connection

High Refresh Rate

With a high refresh rate up to 3840Hz

Super Long Working Life

100000 hours working life, approximately
last for 8-10 years

Wide Color Gamma

High vivid performance due to active RGB
lighting technology

Low Temperature

Advanced cooling solution

120''

Size(mm): 2560×1440mm
PH1.0: 2k
PH1.2: Cinema2k
PH1.3: 1080p
PH1.6: 1536×864
PH2.0: 720p
PH2.5: 1024×576

150''

Size(mm): 3200×1800mm
PH1.0: 3200×1800
PH1.2: 2k
PH1.3: 2400×1350
PH1.6: 1080p
PH2.0: 1600×900
PH2.5: 720p

180''

Size(mm): 3840×2160mm
PH1.0: 4k
PH1.2: 3072×1952
PH1.3: 2880×1620
PH1.6: 2304×1296
PH2.0: 1080p
PH2.5: 1536×864

210''

Size(mm): 4480×2520mm
PH1.0: 4480×2520
PH1.2: 3584×2240
PH1.3: 3360×1890
PH1.6: 2688×1512
PH2.0: 2240×1260
PH2.5: 1792×1008

240''

Size(mm): 5120×2880mm
PH1.0: 5k
PH1.2: 4096×2528
PH1.3: 4k
PH1.6: 3072×1728
PH2.0: 2k
PH2.5: Cinema2k
Remark:
720p= 1280x720
1080p=1920x1080
2k=2560x1440
4k=3840x2160
5k=5120x2880
Cinema2k=2048x1152
